Accessories Directional Panel Antenna 350-400MHz 400-450MHz 450-500MHz 500-560MHz 700-775MHz 775-850MHz 850-930MHz 930-1020MHz Directional antennas, also called plate antennas, are designed to radiate within a specific angle range in the horizontal pattern, providing what is commonly known as directivity. In the vertical pattern, they form beams with a……
Directional antennas, also called plate antennas, are designed to radiate within a specific angle range in the horizontal pattern, providing what is commonly known as directivity. In the vertical pattern, they form beams with a certain width. Like omnidirectional antennas, the smaller the lobe width, the greater the gain achieved.

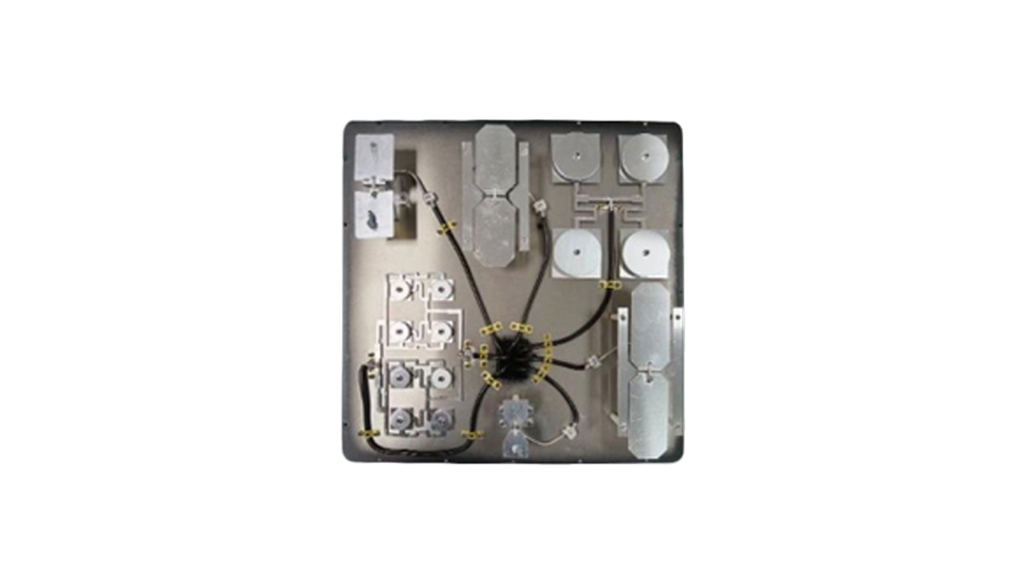

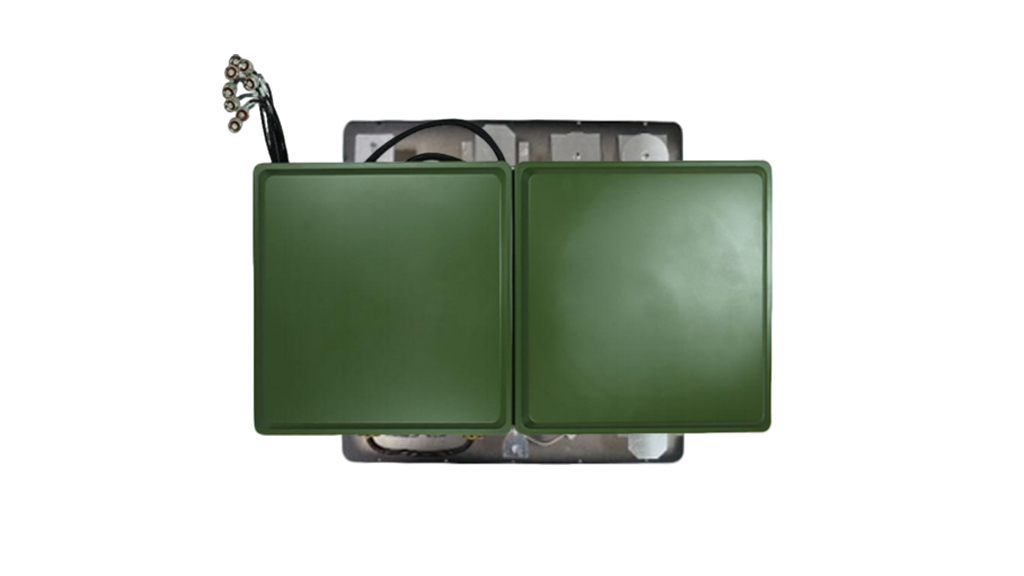

This 8-band portable handheld panel antenna is specifically engineered for communication systems requiring long-distance communication, small coverage areas, high target density, and efficient frequency utilization. With its directional characteristics, it focuses signal energy in specific directions for enhanced performance in targeted applications.
The BNT-Accessories Directional Panel Antenna covers eight frequency bands from 350MHz to 1020MHz, making it suitable for various communication and detection applications. With a maximum input power of 50W and operating temperature range of -30°C to 65°C, this antenna provides reliable performance in diverse environmental conditions.
| Parameter | Specification |
|---|---|
| Product Name | 8 Bands Portable Handheld Panel Antenna |
| Frequency Range | 350-400MHz, 400-450MHz, 450-500MHz, 500-560MHz, 700-775MHz, 775-850MHz, 850-930MHz, 930-1020MHz |
| VSWR | ≤2.0 |
| Gain | 4-6±1dBi |
| Maximum Input Power | 50W |
| Operating Temperature | -30°C to 65°C |
| Antenna Type | Directional Panel Antenna |
| Radiation Pattern | Directional with focused beam |
| Application | Long-distance communication, high-density target areas |
| Customizable Frequency | Available upon request |
Note: This directional antenna is ideal for applications requiring focused signal transmission and reception in specific directions.
| Band | Frequency Range | Typical Application |
|---|---|---|
| Band 1 | 350-400MHz | Land mobile, public safety |
| Band 2 | 400-450MHz | Amateur radio, business radio |
| Band 3 | 450-500MHz | Business radio, telemetry |
| Band 4 | 500-560MHz | UHF television, mobile communications |
| Band 5 | 700-775MHz | Public safety, LTE networks |
| Band 6 | 775-850MHz | Cellular communications, LTE |
| Band 7 | 850-930MHz | Cellular, GSM, business radio |
| Band 8 | 930-1020MHz | Aircraft navigation, telemetry |
The BNT-Accessories Directional Panel Antenna offers the following performance characteristics:
This directional panel antenna is ideal for integration into drone detection systems, providing focused signal reception for enhanced detection range and accuracy in specific directions.
Used in anti-drone jamming systems to focus transmission power in specific directions, increasing effective jamming range while minimizing interference with non-target areas.
Ideal for long-distance communication systems where focused signal transmission is required to reach distant targets with minimal power loss and interference.
Deployed in border security systems for directional monitoring and communication, providing focused coverage along border areas while minimizing signal propagation into neighboring territories.
Used in military communication systems for directional signal transmission in tactical operations, enhancing communication security and reducing detectability.
Integrated into security systems for critical infrastructure protection, providing directional monitoring and communication capabilities for enhanced perimeter security.
Unlike omnidirectional antennas that radiate equally in all directions, this directional panel antenna concentrates signal energy in specific directions, providing enhanced signal strength and range in targeted areas while reducing interference from unwanted directions.
With coverage across eight frequency bands from 350MHz to 1020MHz, this antenna supports diverse communication applications including public safety, cellular networks, amateur radio, and specialized communication systems requiring multi-band operation.
Capable of handling up to 50W of input power, this antenna is suitable for high-power transmission applications commonly used in jamming systems, long-distance communication, and emergency response scenarios where reliable high-power operation is essential.
Designed as a portable handheld antenna, it offers flexibility for field deployment, rapid setup, and mobile operations. The compact form factor makes it ideal for tactical applications where mobility and quick deployment are critical requirements.
With a VSWR of ≤2.0 across all operating bands, the antenna ensures efficient power transfer from the transmitter to the antenna element, minimizing signal reflection and maximizing overall system efficiency and performance.
The antenna maintains a consistent gain of 4-6±1dBi across all eight frequency bands, providing reliable signal strength and performance consistency regardless of the operating frequency within the specified range.
Rated for operation in temperatures from -30°C to 65°C, this antenna maintains reliable performance in extreme environmental conditions, making it suitable for deployment in diverse climates and challenging outdoor environments.
The antenna supports frequency customization to meet specific application requirements, allowing users to tailor the frequency coverage to their particular operational needs and regulatory requirements in different regions.
