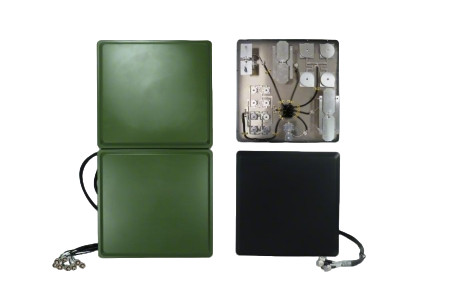

Fixed base station flat panel antenna is a directional antenna mainly used for outdoor signal coverage. It has the advantages of high gain, good radiation pattern, convenient vertical downtilt control, reliable sealing, and long service life. It features a flat appearance and is suitable for installation on buildings, racks, and other structures to provide communication coverage.
Directional base station flat panel antennas are widely used in communication systems, including cell phone or jamming networks. It is one of the most popular types of base station antennas. It is mainly used for outdoor signal coverage, improving communication quality and coverage, and can adapt to different base station construction requirements.
With a wide frequency coverage from 250MHz to 5925MHz, this fixed base station plate antenna supports various communication bands and is ideal for both civilian and military applications. The antenna is designed to withstand harsh environmental conditions while maintaining optimal performance for long-range communication and signal coverage.
| Parameter | Specification |
|---|---|
| Product Name | Fixed Base Station Plate Antenna |
| Frequency Bands | 250-350MHz, 350-450MHz, 650-850MHz, 840-1000MHz, 1000-1300MHz, 1300-1500MHz, 1500-1620MHz, 2400-2500MHz, 5150-5300MHz, 5725-5925MHz |
| VSWR | ≤2.0 |
| Gain (dBi) | 3.5±1, 4±1, 7±1, 8±1, 8±1, 9±1, 11±1, 14±1, 14±1, 14±1 dBi (per respective band) |
| Maximum Input Power | 200W |
| Horizontal Beam Width (0°) | 90±15°, 85±15°, 75±10°, 65±10° |
| Vertical Beam Width (0°) | 65±10°, 32±5° |
| Front-to-Back Ratio (dB) | ≥15, ≥18, ≥20, ≥23, ≥25 dB |
| Antenna Type | Fixed Base Station Plate/Directional Antenna |
| Application | Outdoor signal coverage, communication systems, jamming networks |
| Installation | Buildings, racks, towers, and other structures |
Note: Gain values vary by frequency band. Higher frequencies typically have higher gain due to antenna design characteristics.
| Frequency Band | Gain Range | Typical Application |
|---|---|---|
| 250-350MHz | 3.5±1 dBi | Military, VHF communication |
| 350-450MHz | 4±1 dBi | Land mobile, public safety |
| 650-850MHz | 7±1 dBi | UHF communications, LTE |
| 840-1000MHz | 8±1 dBi | GSM, LTE, CDMA |
| 1000-1300MHz | 8±1 dBi | GPS, navigation, telemetry |
| 1300-1500MHz | 9±1 dBi | Satellite communication, radar |
| 1500-1620MHz | 11±1 dBi | GPS L1, GLONASS |
| 2400-2500MHz | 14±1 dBi | WiFi, Bluetooth, ISM band |
| 5150-5300MHz | 14±1 dBi | WiFi 5GHz, WLAN |
| 5725-5925MHz | 14±1 dBi | WiFi 5GHz, point-to-point |
The BNT-Accessories Fixed Base Station Plate Antenna delivers exceptional performance for various applications:
Used in cellular base stations for signal transmission and reception, providing reliable outdoor coverage for mobile networks and wireless communication systems.
Integrated into anti-drone jamming systems for directional signal transmission, providing focused coverage to disrupt unauthorized drone communications and control signals.
Deployed in military communication systems for secure, long-range directional communication, tactical networks, and battlefield communication links.
Used in border defense systems for directional communication and surveillance, providing focused coverage along border areas and perimeter security zones.
Ideal for establishing directional point-to-point communication links between fixed locations, such as between buildings, towers, or remote installations.
Used by wireless internet service providers for directional coverage in fixed wireless access networks, providing high-speed connectivity to residential and commercial areas.
With gain ranging from 3.5dBi to 14dBi across different frequency bands, this fixed base station plate antenna provides strong signal strength and directional focus. The directional radiation pattern ensures efficient signal transmission and reception in specific directions, minimizing interference and maximizing coverage in target areas.
Covering multiple frequency bands from 250MHz to 5925MHz, this antenna supports various communication systems including VHF, UHF, cellular, WiFi, and specialized bands. The wide frequency coverage makes it versatile for different applications from traditional communication to modern wireless systems.
Featuring horizontal beam widths from 65° to 90° and vertical beam widths of 65°±10° and 32°±5°, this antenna provides flexible coverage patterns. The adjustable downtilt capability allows for precise optimization of coverage area and signal direction for different installation scenarios and requirements.
With maximum input power of 200W, this antenna supports high-power transmission applications, making it suitable for both communication and jamming systems. The robust design ensures reliable performance even under continuous high-power operation.
15-25 dB front-to-back ratio ensures minimal backward radiation, reducing interference and improving directional performance. This characteristic is particularly important for reducing interference between adjacent sectors in cellular networks and improving system capacity.
Designed for outdoor installation with reliable sealing and robust construction, this antenna withstands harsh environmental conditions including rain, wind, and temperature extremes. The durable design ensures long service life with minimal maintenance requirements.
Suitable for installation on buildings, racks, towers, and other structures, this flat panel antenna offers flexible deployment options. The compact design minimizes visual impact while providing optimal performance for various installation scenarios.
Can adapt to different base station construction requirements and installation environments. The antenna’s design allows for easy integration into various system configurations, making it suitable for both new installations and system upgrades.
