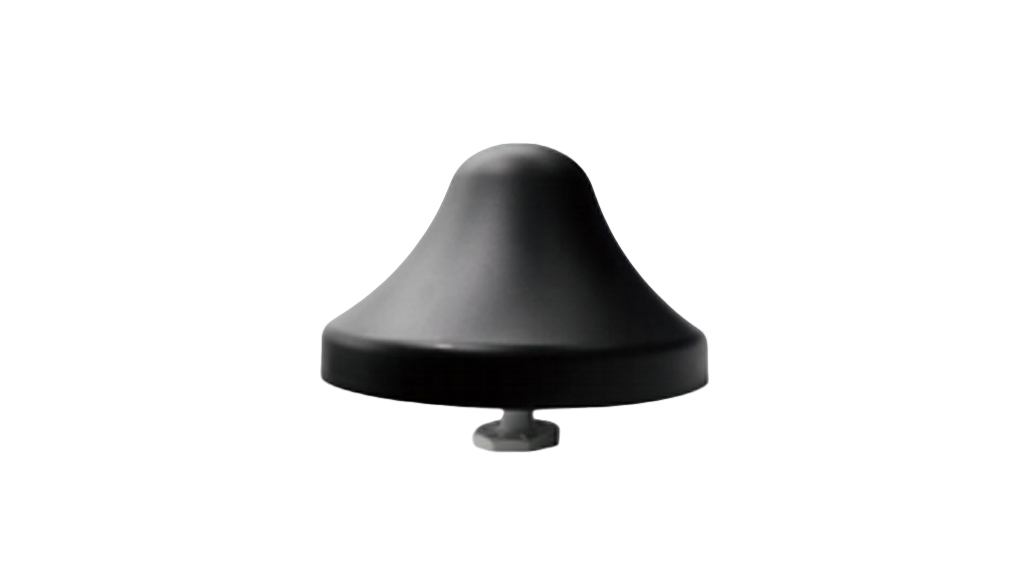

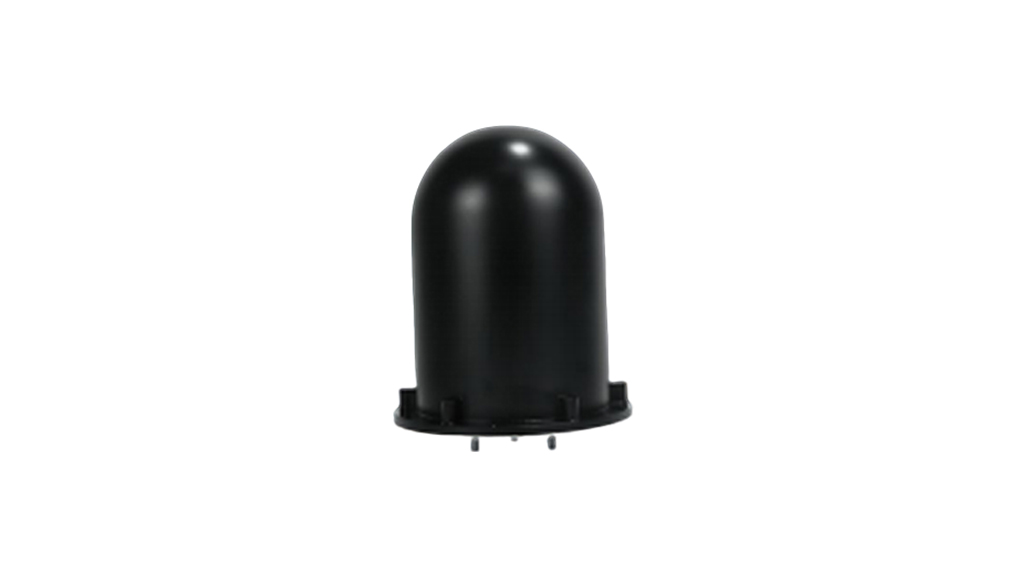

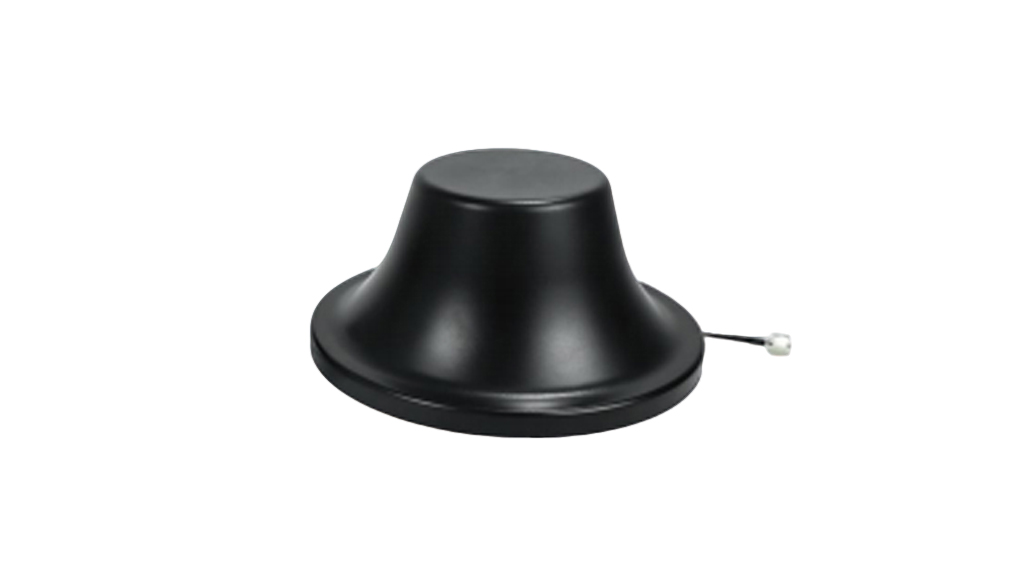

Accessories Wide Band Omni Antenna 300-500MHz 500-1100MHz 1100-1620MHz 2400-2500MHz 5150-6200MHz The BNT-Accessories Wide Band Omni Antenna is an omnidirectional antenna designed to provide uniform radiation in all 360° directions. This non-directional antenna exhibits excellent performance with the characteristic that the smaller the flap width, the ……
The BNT-Accessories Wide Band Omni Antenna is an omnidirectional antenna designed to provide uniform radiation in all 360° directions. This non-directional antenna exhibits excellent performance with the characteristic that the smaller the flap width, the greater the gain achieved.
This wide band antenna covers multiple frequency ranges from 300MHz to 6200MHz, making it suitable for various communication applications. With a horizontal beamwidth of 360°, it provides comprehensive coverage for drone detection, communication systems, and signal monitoring equipment.
The antenna features a compact design with dimensions of Φ300×145mm and can operate in temperatures ranging from -30°C to 65°C. With a maximum input power of 50W and customizable frequency options, it offers flexibility for integration into different systems and applications.
| Parameter | Value |
|---|---|
| Product Name | Wide Band Omni Antenna |
| Frequency | 300-500MHz, 500-1100MHz, 1100-1620MHz, 2400-2500MHz, 5150-6200MHz |
| VSWR | ≤3.0, ≤2.0, ≤1.8 (Depending on frequency band) |
| Gain (dBi) | 2/3/5/6/6±0.5dBi (Depending on frequency band) |
| Maximum Input Power | 50W |
| Operating Temperature | -30°C to 65°C |
| Horizontal Beamwidth | 360° (Non-directional) |
| Size | Φ300×145MM |
| Customizable Frequency | Available upon request |
| Radiation Pattern | Omnidirectional (360° uniform radiation) |
| Application | Drone detection systems, Communication equipment, Signal monitoring |
Note: VSWR and gain values vary depending on the specific frequency band within the operating range.
| Frequency Band | VSWR | Gain (dBi) |
|---|---|---|
| 300-500MHz | ≤3.0 | 2 dBi |
| 500-1100MHz | ≤2.0 | 3 dBi |
| 1100-1620MHz | ≤1.8 | 5 dBi |
| 2400-2500MHz | ≤1.8 | 6 dBi |
| 5150-6200MHz | ≤1.8 | 6±0.5 dBi |
The BNT-Accessories Wide Band Omni Antenna delivers exceptional performance with the following characteristics:
This omnidirectional antenna is ideal for integration into drone detection systems, providing 360° coverage to monitor and detect unauthorized UAV activities in protected airspace.
Used in various communication systems requiring omnidirectional coverage, including wireless networks, radio communication, and data transmission applications.
Effective for signal monitoring and surveillance applications where comprehensive 360° coverage is essential for detecting and analyzing RF signals across multiple frequency bands.
Integrated into anti-drone systems as part of the detection and jamming infrastructure, providing wideband coverage for comprehensive protection against UAV threats.
Deployed in border security systems to monitor electromagnetic spectrum activities and detect potential threats across wide geographical areas with 360° coverage.
Used to protect critical infrastructure by monitoring RF signals and detecting potential drone activities around sensitive facilities and installations.
With operational frequency range spanning from 300MHz to 6200MHz across multiple bands, this antenna provides wide coverage suitable for various communication, detection, and monitoring applications. The broad frequency support makes it versatile for integration into different systems.
The antenna delivers genuine 360° uniform radiation pattern in the horizontal plane, ensuring non-directional coverage that eliminates blind spots. This characteristic makes it ideal for applications requiring comprehensive area coverage without the need for mechanical rotation or multiple directional antennas.
Featuring progressive gain improvement from 2dBi to 6dBi across different frequency bands, the antenna provides consistent performance throughout its operational range. The design principle that “the smaller the flap width, the greater the gain” is effectively implemented to maximize performance.
With VSWR ratings ranging from ≤1.8 to ≤3.0 depending on the frequency band, the antenna ensures efficient power transfer and minimal signal reflection. This results in improved system performance and reduced signal loss in both transmission and reception applications.
Capable of handling up to 50W maximum input power, this antenna is suitable for high-power transmission applications. The robust design ensures reliable performance even under demanding operational conditions.
Designed to operate reliably in temperatures from -30°C to 65°C, this antenna performs consistently in various environmental conditions. This makes it suitable for both indoor and outdoor installations in diverse climatic regions.
With dimensions of Φ300×145MM, the antenna features a compact form factor that facilitates easy installation and integration. The durable construction ensures long-term reliability in various deployment scenarios.
The antenna supports frequency customization to meet specific application requirements, providing flexibility for specialized implementations. This customization capability ensures optimal performance for targeted frequency bands and applications.
