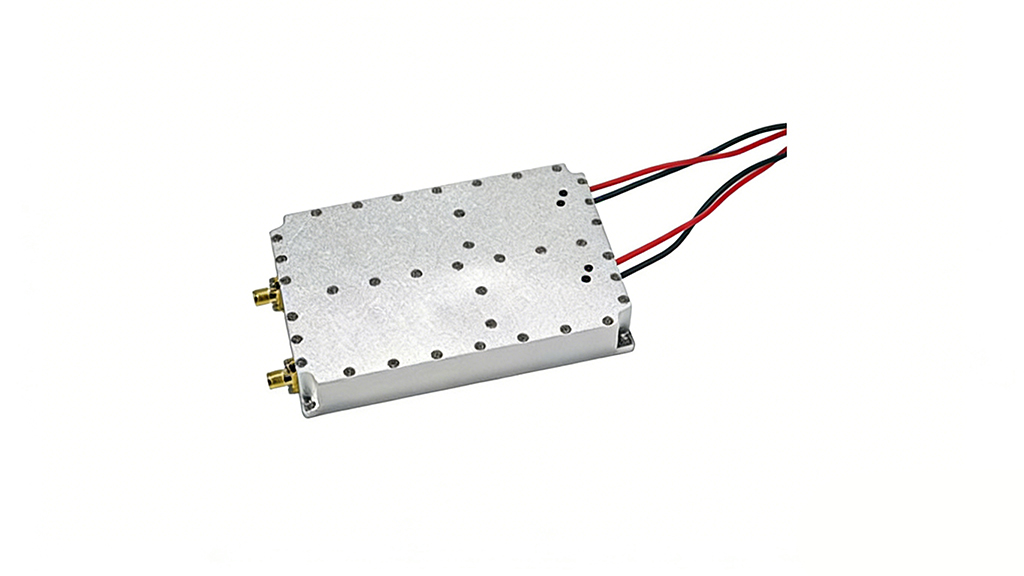

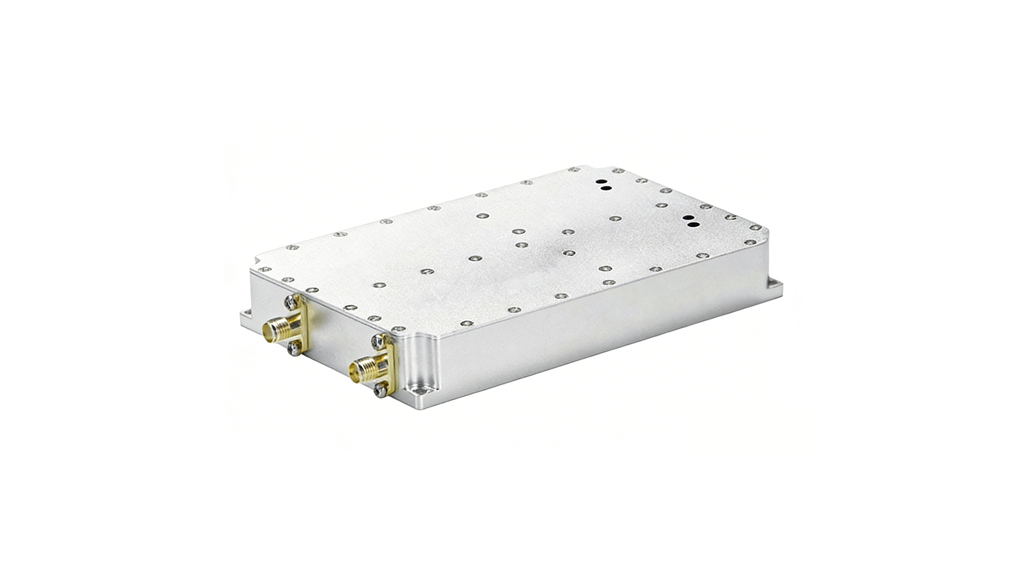

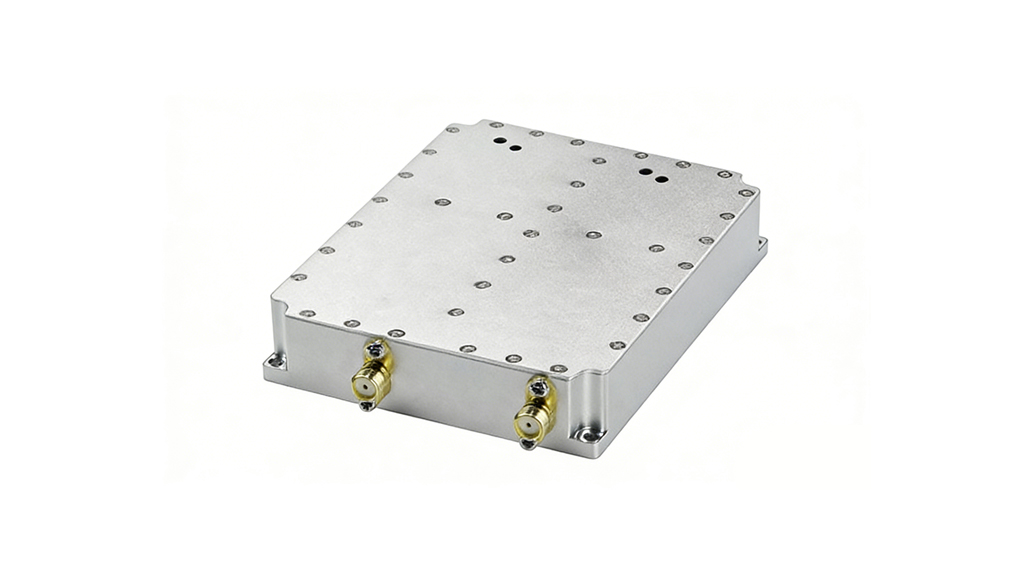

Module-Series Dual-Band Jammer Module (20-6500MHz) RF jammers are used for UAV jammers, mobile phone jammers, and RCIED (Remote Controlled Improvised Explosive Device) jammers, among other applications. They are key components for making various signal jammers. This jammer module is designed for signal suppression equipment in electronic warfare, primari……
RF jammers are used for UAV jammers, mobile phone jammers, and RCIED (Remote Controlled Improvised Explosive Device) jammers, among other applications. They are key components for making various signal jammers. This jammer module is designed for signal suppression equipment in electronic warfare, primarily for communication confrontation, radar, navigation, suppression, and confrontation equipment and systems.
This dual-band jammer module serves as a core component in anti-drone systems, providing the essential RF interference capability needed to disrupt unauthorized drone communications. The module is engineered for integration into various jamming systems, offering reliable performance and flexible deployment options for different operational requirements.
As a military-grade drone jammer module from BNT China, it represents advanced technology in electronic warfare components, delivering high-performance signal suppression for border defense, military operations, and critical infrastructure protection scenarios.
| Parameter | Specification |
|---|---|
| Product Name | Dual-Band Jammer Module (20-6500MHz) |
| Frequency Band | 20-433MHz, 500MHz, 600MHz, 700MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Output Power | 50W |
| Power Supply | DC 24-28V |
| Operating Temperature | -20°C to +50°C |
| Humidity | 30% to 95% |
| Frequency Range | 20-6500MHz |
| Primary Applications | UAV jammers, Mobile phone jammers, RCIED jammers |
| System Integration | Designed for integration into various jamming systems and equipment |
| Electronic Warfare Role | Signal suppression for communication confrontation, radar, navigation, and electronic warfare systems |
Note: This jammer module is designed for integration into complete jamming systems and requires proper installation and configuration for optimal performance.
| Frequency Band | Range |
|---|---|
| Low Frequency Band | 20-433MHz |
| 500MHz Band | 500MHz |
| 600MHz Band | 600MHz |
| 700MHz Band | 700MHz |
| 900MHz Band | 900MHz (Cellular communication) |
| 1.2GHz Band | 1.2GHz |
| 1.4GHz Band | 1.4GHz |
| 1.5GHz Band | 1.5GHz (GPS L1) |
| 2.4GHz Band | 2.4GHz (WiFi, Bluetooth, Drone control) |
| 5.2GHz Band | 5.2GHz (WiFi, Drone video transmission) |
| 5.8GHz Band | 5.8GHz (WiFi, Drone control) |
The BNT-Module-Series Dual-Band Jammer Module provides core jamming capabilities for various electronic warfare systems:
This drone jammer module integrates into portable, handheld jamming systems for tactical field operations, providing mobile signal suppression capabilities for security personnel.
Integrated into vehicle-mounted systems for convoy protection and mobile operations, this module provides jamming capabilities against FPV (First Person View) drones and other threats.
Used in fixed installation anti-drone systems for protecting critical infrastructure, government facilities, and secure perimeters from unauthorized drone incursions.
Integrated into discreet luggage-style systems for covert protection during VIP movements, diplomatic missions, and sensitive operations requiring portable, concealable jamming.
This module powers backpack-portable jamming systems for mobile operators, providing on-the-move signal suppression capability for field operations and rapid response teams.
As a core component in military anti-drone systems, this module provides essential jamming capability for base protection, convoy security, and forward operating locations.
The UAV jamming amplifier module amplifies weak jamming signals to higher power levels, ensuring the jamming signal effectively covers the communication frequency band of target UAVs. This amplification enables reliable disruption of drone control, navigation, and video transmission signals across operational ranges.
Utilizing advanced circuit design and technology, this module maintains signal stability and reliability throughout the amplification process. This prevents signal distortion or aberration that could compromise jamming effectiveness, ensuring consistent performance in diverse operational conditions.
The jammer module is engineered for rapid response, enabling quick jamming of target drones in minimal time. This fast response capability is essential for handling unexpected drone threats and adapting to dynamic operational scenarios where timing is critical.
With a modular construction, this component facilitates straightforward maintenance, upgrading, and repair processes. The design allows users to combine and replace different modules according to specific mission requirements, enabling system customization and future capability enhancements.
Covering 20-6500MHz frequency range with specific bands including 20-433MHz, 500MHz, 600MHz, 700MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz, providing comprehensive jamming capability against various communication and control systems.
Designed to operate reliably in temperatures from -20°C to +50°C and humidity levels from 30% to 95%, this module maintains performance in diverse environmental conditions from arctic cold to tropical heat and humidity.
With DC 24-28V power input, the module is compatible with standard power systems, facilitating easy integration into various platforms including vehicles, fixed installations, and portable power systems for flexible deployment options.
Specifically engineered for electronic warfare applications including communication confrontation, radar, navigation, and suppression systems, providing specialized performance for military and security applications requiring reliable signal disruption.
