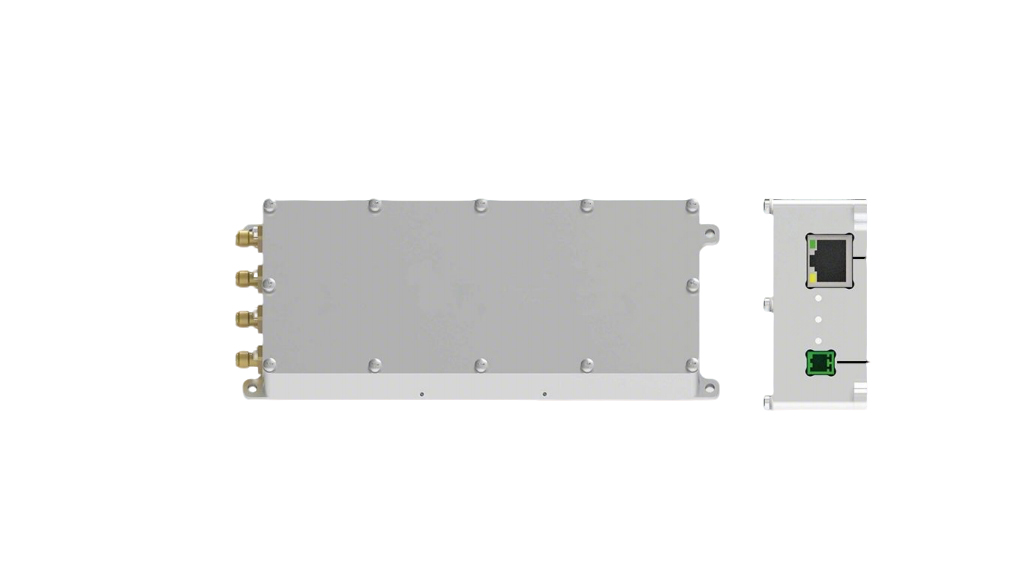

BNT-Module-Series Positioning Module (2.4GHz-5.8GHz) SMA RF Interface USB CAN This high-precision positioning module detects and tracks drones/controllers via DSP-based spectrum analysis, delivering real-time data (model, 3D coordinates, speed, pilot location) in EMI-heavy environments. Standardized interfaces (e.g., USB, CAN) enable rapid integration……
This high-precision positioning module detects and tracks drones/controllers via DSP-based spectrum analysis, delivering real-time data (model, 3D coordinates, speed, pilot location) in EMI-heavy environments. Standardized interfaces (e.g., USB, CAN) enable rapid integration with 70% lower development effort.
The BNT-Module-Series Positioning Module utilizes advanced signal processing technology to provide accurate positioning information for UAV detection and tracking applications. This passive detection module receives signals without transmission, ensuring covert operation and minimal environmental interference.
With its compact design and low power consumption, this module is ideal for integration into various anti-drone systems, providing essential drone detection and tracking capabilities for security and defense applications.
| Parameter | Specification |
|---|---|
| Product Name | Positioning Module |
| Drone Models Locatable | DJI Mavic, Air, Mini, FPV, Avata |
| Frequency | 2.4GHz, 5.8GHz |
| Power Consumption | ≤5W |
| Power Supply | DC 9-36V |
| Operating Temperature | -20℃ to +60℃ |
| Waterproof Rating | IP65 |
| Weight | ~380g |
| Size (L×W×H) | 167 × 83 × 42mm |
| Detection Method | Passive (Receives signals only, no transmission) |
| Interface Types | SMA RF Interface, USB, CAN |
Note: This module only works with certain drone models. For more details, please refer to the specifications document.
| Drone Brand | Models |
|---|---|
| DJI | Mavic series, Air series, Mini series, FPV, Avata |
The BNT-Module-Series Positioning Module provides advanced drone detection and tracking with the following capabilities:
This positioning module provides essential drone detection and tracking capabilities for military bases, protecting against unauthorized UAV surveillance and potential threats to sensitive installations.
Integrated into border defense systems to detect and track drone incursions across national boundaries, preventing smuggling, espionage, and other cross-border threats.
Secures power plants, government buildings, and other critical facilities by detecting and tracking unauthorized drone activities that could compromise security or safety.
Ensures safety at large public events, VIP gatherings, and sports venues by providing real-time drone detection and tracking capabilities for security personnel.
Integrated into portable and backpack-based anti-drone systems for mobile security teams, providing on-the-move drone detection and tracking capabilities.
Part of distributed urban security networks monitoring drone activities in sensitive urban areas, government districts, and public spaces for comprehensive airspace awareness.
Utilizes advanced Digital Signal Processing (DSP) technology for spectrum analysis, enabling high-precision detection and tracking of drones and their controllers. This technology provides accurate real-time data including 3D coordinates, velocity, and identification information even in EMI-heavy environments.
Employs passive detection methodology that only receives signals without transmission, ensuring covert operation and eliminating interference with surrounding communications. This approach makes the system undetectable to targets and suitable for stealth operations in sensitive environments.
Provides extensive positioning data including drone model identification, serial number recognition, longitude, latitude, altitude, velocity measurements, and pilot coordinates. This comprehensive information enables complete situational awareness and informed response decisions for security personnel.
Features standardized interfaces including SMA RF interface, USB, and CAN bus, enabling rapid integration with various systems and reducing development effort by up to 70%. This modular approach allows for flexible deployment in diverse anti-drone system architectures.
With compact dimensions of 167×83×42mm and low weight of approximately 380g, this module is ideal for integration into space-constrained systems. The low power consumption (≤5W) enables energy-efficient operation suitable for portable and battery-powered applications.
Designed to operate reliably in temperatures from -20℃ to +60℃ with IP65 waterproof rating, ensuring consistent performance in various environmental conditions. This robustness makes the module suitable for deployment in challenging outdoor environments.
Supports DC 9-36V power input, providing compatibility with various power systems including vehicle electrical systems, portable battery packs, and fixed installations. This flexibility facilitates deployment in diverse operational scenarios from mobile to stationary applications.
Specifically designed to locate popular DJI drone models including Mavic series, Air series, Mini series, FPV, and Avata, covering a significant portion of the commercial drone market. This focused compatibility ensures optimized performance against common UAV threats.
